Introduction

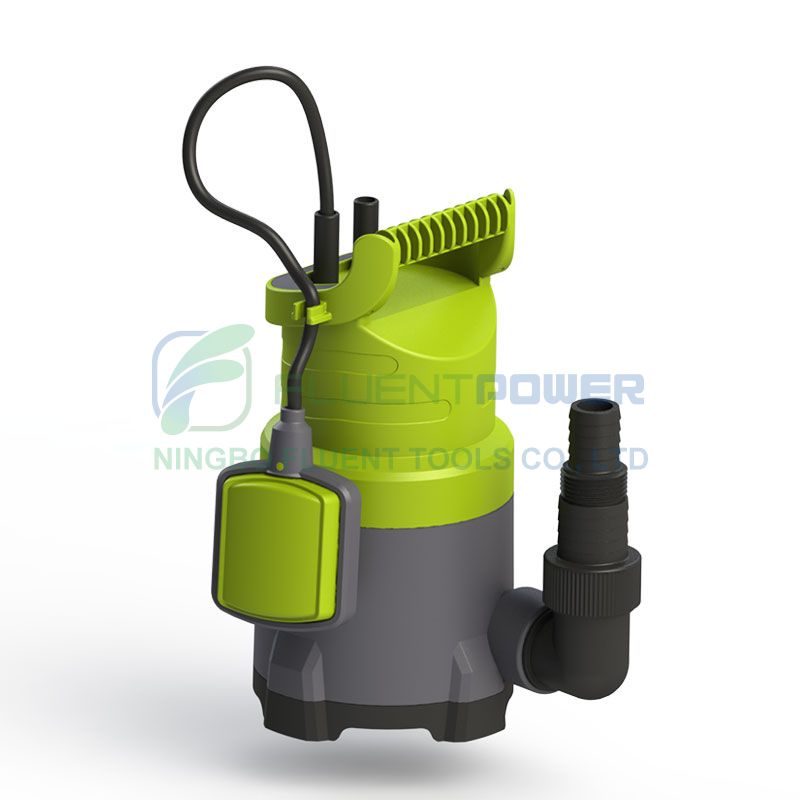

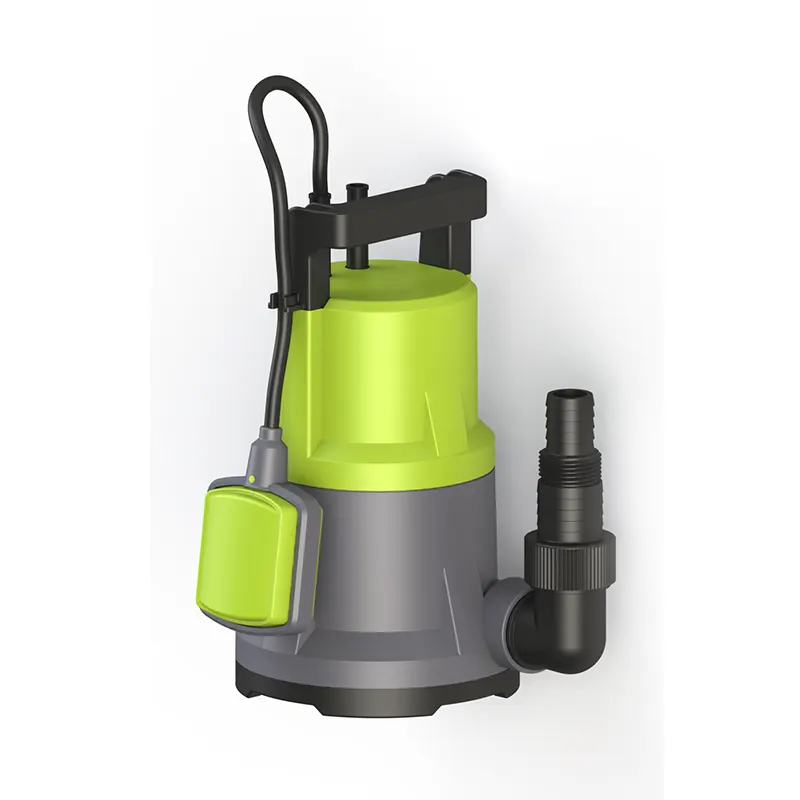

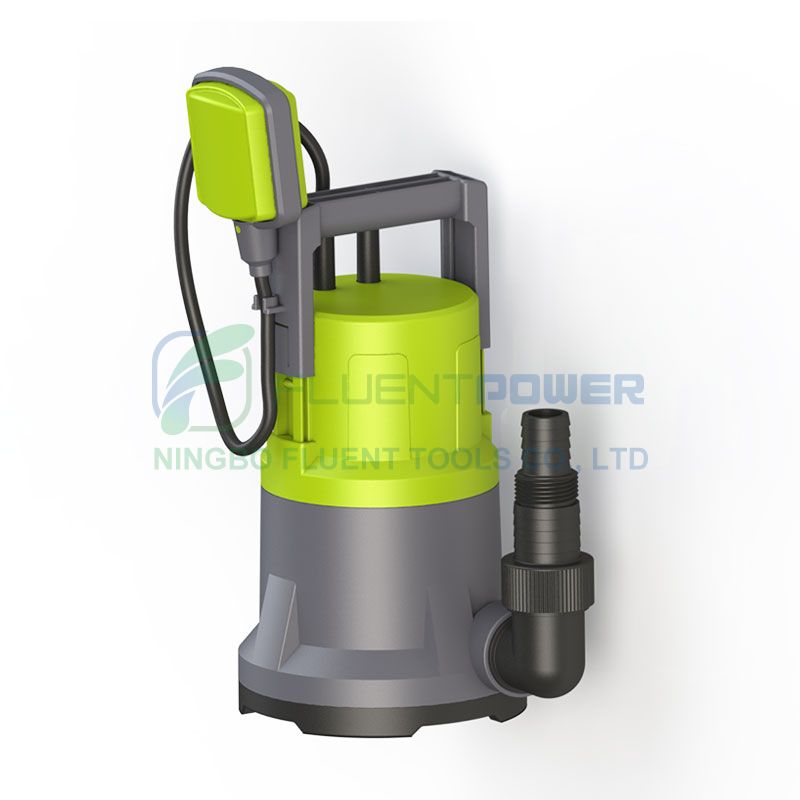

Clean Water Pump in Plastic Casing in Plastic Casing are specifically designed for household applications. They are suitable for various domestic scenarios such as basement draining, well water extraction, pond maintenance, and pool water circulation. The entire body of these pumps, including the cap, main body, and base, is constructed using thermoplastic material. This thermoplastic casing contributes to the pump's lightweight design, cost-effectiveness, and offers a wider range of color options to choose from. These pumps provide an efficient and affordable solution for homeowners seeking reliable water pumping with added convenience and aesthetic appeal.
Specification
FLUENT has developed, tested, and produced multiple models with different appearances to cater to various application scenarios and occasions. In order to enhance the versatility of clean water submersible pumps, FLUENT has incorporated different versions of their own manufactured electric motors, offering a range of power rates for the pumps.
The power rates and corresponding specifications, including voltage, flow rates, and maximum delivery heights, are typically presented in a table format. FLUENT also provides specifically tuned motors to meet diverse specification requirements. Additionally, motors with a voltage of 110V are available to accommodate specific needs.
|
|
|
|
|
|
| 400W | 230V/5OHz | 7000L/H | 6.5M | 7M | 5mm |
| 550W | 230V/5OHz | 8500L/H | 7.5M | 7M | |
| 750W | 230V/5OHz | 10500L/H | 8.5M | 7M | |
| 900W | 230V/5OHz | 11500L/H | 9M | 7M | |
| 1100W | 230V/5OHz | 12500L/H | 9.5M | 7M | |
| 250W | 230V/5OHz | 5000L/H | 6M |
5M |
Output Connection
To address the possibility of impurities in the water being pumped, clean water submersible pumps are equipped with a side water output or upper output. The water output is designed to facilitate easy connection to a water pipe using a thermoplastic connector accessory included in the package.
The provided connector, which comes as a standard accessory with the clean water submersible pump, enables quick and convenient hose connection. It is compatible with hoses of different diameters ranging from 1" to 2", and can be connected using either BSP (British Standard Pipe Parallel Thread) or NPT (American National Pipe Taper) threaded connections, ensuring a secure and reliable fit.
|
Thread Size/inch |
Outside Diagram |
|
|
inch |
mm |
|
|
G3/4'' |
1.041 |
26.441 |
|
G1'' |
1.309 |
33.249 |
|
G1 1/4'' |
1.650 |
41.910 |
|
G1 1/2'' |
1.882 |
47.803 |
|
G2'' |
2.347 |
59.614 |
Chart1. BSP Size
|
Thread Size/inch |
Outside Diagram |
|
|
inch |
mm |
|
|
3/4'' NPT |
1.050 |
26.670 |
|
1'' NPT |
1.315 |
33.401 |
|
1 1/4'' NPT |
1.660 |
42.164 |
|
1 1/2'' NPT |
1.900 |
48.260 |
|
2'' NPT |
2.375 |
60.325 |
Chart1. NPT Size
Manufacturer
After years of experience in the pump industry, FLUENT has established itself as a reputable manufacturer specializing in the production and development of domestic water pumps. Guided by their business philosophy of "Innovation, Expertise, and Diversification," FLUENT is actively advancing in the field of intelligent manufacturing and exploring new possibilities in future watering systems. Their commitment to innovation, professionalism, and a wide range of products underscores FLUENT's dedication to meeting the evolving needs of their customers and staying at the forefront of the industry.
