Reliable water pressure is essential for many residential and garden applications, yet households using rainwater tanks, wells, cisterns, or other alternative water sources can face unstable pressure and inconvenient manual operation. As water-saving practices become more common, users are increasingly looking for compact systems that can combine water storage, pressure boosting, and automatic supply in one solution.
This trend is increasing interest in integrated booster pump stations rather than standalone pumps. For homeowners, installers, distributors, and water-system contractors, the purchasing decision now involves more than pump power. Flow rate, head, suction capability, tank configuration, pressure control, motor protection, installation convenience, and maintenance requirements all need to be considered together.

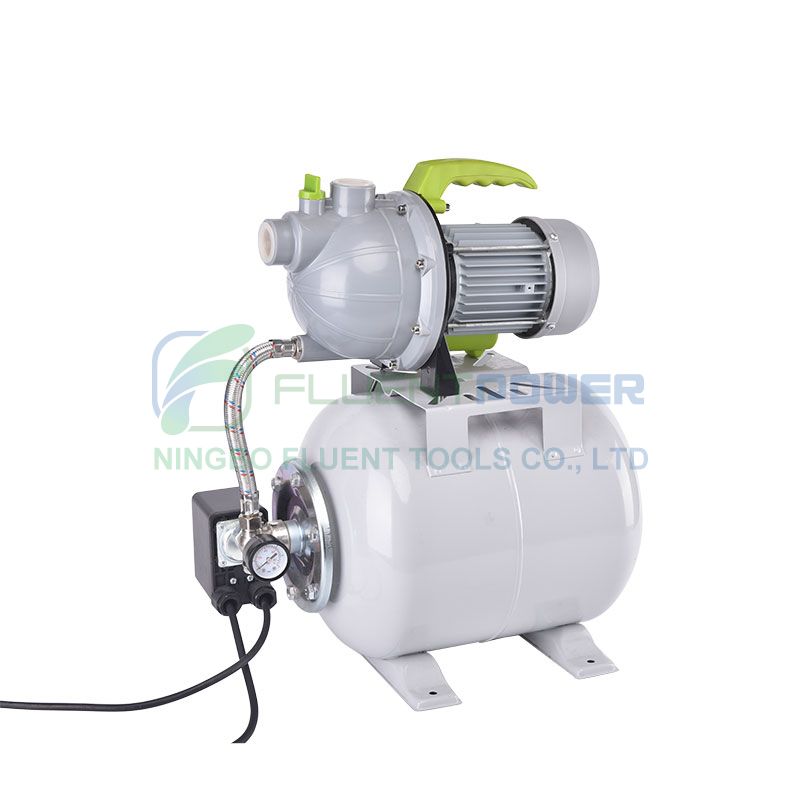

The Boost Pressure System with Plastic Housing from FLUENTPOWER® combines a domestic garden pump with a water storage tank to provide an integrated solution for household water supply and garden watering. According to the manufacturer's published specifications, the FGPXXX8JC series is available in power versions from 600W to 1200W, with maximum flow rates ranging from 2800L/H to 3500L/H and maximum heads from 35M to 46M.
Rainwater harvesting and well-water utilization can reduce reliance on treated mains water for suitable non-potable applications such as garden irrigation, toilet flushing, and other domestic service-water requirements. However, collecting water is only part of the solution. The stored water still needs to be delivered at a useful and relatively stable pressure.
A booster pressure system combines pumping and storage functions, making it possible to store service water and subsequently supply it through the domestic water network or irrigation system.
FLUENTPOWER® identifies its booster pressure system as a stationary solution that combines a garden pump and domestic water tank. The system can use rainwater or well water as a service-water source, depending on the installation and application requirements. :contentReference[oaicite:1]{index=1}
Using separate pumps, tanks, pressure controls, and gauges can increase the number of components that installers need to coordinate. An integrated system brings several of these functions together and can simplify system planning.
For B2B buyers, this can also make product selection and distribution more straightforward because the pump and pressure-storage components are designed to operate as a system rather than being selected independently.
| Parameter | FGPXXX8JC Specification | Purchasing Consideration |
|---|---|---|
| Product Type | Boost pressure system with plastic housing | Suitable for integrated domestic water supply and watering applications |
| Power Options | 600W / 800W / 1000W / 1200W | Allows selection according to required water demand |
| Rated Voltage / Frequency | 230V / 50Hz | Must match the electrical supply of the installation site |
| Maximum Flow Rate | 2800 / 3000 / 3200 / 3500 L/H | Indicates available water delivery capacity by model |
| Maximum Head | 35M / 40M / 44M / 46M | Important when overcoming elevation and system resistance |
| Maximum Suction Head | 7M / 8M | Relevant when drawing water from wells or tanks |
| Connection Size | 1 inch | Should match the connected piping system |
| Motor Protection | Integrated thermal circuit breaker | Helps protect the motor against overload conditions |
| Water Tank | Domestic tank with EPDM membrane | Provides pressurized water storage |
| Pressure Gauge | Integrated | Allows users to observe tank pressure |
| Drain Plug | Reserved on the tank | Allows remaining water to be drained in cold-weather conditions |
| Certifications | RoHS, LVD, GS, CE, EMC | Supports compliance considerations for applicable markets |
The published FGPXXX8JC data shows that the 600W version provides up to 2800L/H and 35M head, while the 1200W version reaches up to 3500L/H and 46M head. The available versions allow buyers to match pump capacity more closely with the required water supply conditions instead of selecting a single fixed power configuration. :contentReference[oaicite:2]{index=2}
The integrated tank provides a storage point for service water. According to FLUENTPOWER®, the tank uses a low-maintenance EPDM membrane, while the tank volume and material can be customized according to domestic requirements. :contentReference[oaicite:3]{index=3}
This configuration can be useful where water needs to be stored before being delivered to a household or garden system. The tank also gives the complete system a pressure-storage function rather than relying exclusively on direct pump operation.
A pressure gauge gives users a straightforward way to observe the pressure condition inside the storage tank. For installers and maintenance personnel, this provides useful visual information when checking the system.
Pressure information can also help users identify abnormal operating conditions during troubleshooting. However, the actual pressure settings should always follow the manufacturer's installation requirements and the specific system design.
Water pumps may operate under changing hydraulic conditions. Blocked flow, unsuitable operating conditions, or other abnormal situations can place additional stress on the motor.
The FGPXXX8JC integrates a thermal circuit breaker designed to protect the motor against overload. This is an important consideration for domestic equipment because users may not continuously monitor pump operating conditions. :contentReference[oaicite:4]{index=4}
Higher motor power does not automatically mean a better water-supply solution. Excessive capacity can increase energy consumption and may not provide meaningful benefits if the system demand is relatively low.
Installers should consider required flow, vertical lift, pipe length, pipe diameter, fittings, pressure requirements, and suction conditions before selecting the appropriate power version.
Water remaining inside a pump or tank can freeze when temperatures fall below freezing. Expansion during freezing can potentially damage components if the system is not appropriately protected.
The FGPXXX8JC includes a reserved drain plug on the water tank, allowing users to drain the remaining water when necessary. FLUENTPOWER® specifically identifies this feature as a way to help prevent damage associated with freezing weather. :contentReference[oaicite:5]{index=5}
For installations in cold climates, drainage and winterization should therefore be included in the installation and maintenance plan rather than treated as an afterthought.
Garden irrigation is one of the most direct applications for a booster pressure system. Water collected from a rainwater tank, cistern, or well can be stored and supplied to irrigation equipment through the pump system.
FLUENTPOWER® lists garden irrigation among the application areas of its garden pump and booster pressure system product categories. :contentReference[oaicite:6]{index=6}
Where suitable water sources and local regulations permit, stored water can be used for selected domestic service applications. The system can provide pressure-assisted water delivery without requiring users to operate a standalone pump manually each time water is needed.
Rainwater can be collected and stored for appropriate non-potable applications. A pressure system provides the pumping capability needed to move stored water to the point of use.
Before installation, buyers should verify local regulations concerning rainwater collection and domestic water use, especially where the water may come into contact with potable-water systems.
Well water can also serve as a source for household service water and irrigation. In this application, suction head and source depth become particularly important when selecting the pump configuration.
Maximum head should not be interpreted simply as the height of the building or the vertical distance between the water source and outlet. Pipe friction, fittings, valves, elevation changes, and required terminal pressure all contribute to the actual system resistance.
Installers should therefore calculate the complete hydraulic requirement before selecting a pump model. A system operating close to its maximum head may deliver substantially less flow than its maximum rated flow.
The source can be a rainwater tank, cistern, or well, but the source conditions influence pump selection. Suction distance, water level variation, water cleanliness, and inlet piping all need to be considered.
The published FGPXXX8JC specifications list a maximum suction head of 7M for the 600W model and 8M for the higher-power versions. :contentReference[oaicite:7]{index=7}
The FGPXXX8JC is specified for 230V/50Hz operation. International buyers should verify local electrical requirements before ordering and confirm whether the selected configuration is appropriate for the destination market.
Plastic housing can help reduce equipment weight and provide design flexibility for domestic and garden pumping products. FLUENTPOWER® also offers a separate range of plastic housing garden pumps, positioning thermoplastic construction as an economical option within its garden pump portfolio. :contentReference[oaicite:8]{index=8}
For buyers, the material decision should be based on the intended environment, mechanical requirements, exposure conditions, and expected service life. Plastic housing and stainless-steel housing can each serve different application priorities, so the choice should be made according to actual operating conditions rather than material preference alone.
For distributors and contractors, product selection should begin with the intended application. Buyers should provide information about water source, required flow, required pressure, vertical lift, suction distance, electrical supply, tank capacity, climate, and installation environment.
For customized projects, tank volume and material should also be confirmed. FLUENTPOWER® states that the volume and material of the domestic water tank can be customized according to different domestic requirements. :contentReference[oaicite:9]{index=9}
Buyers should also confirm connection size, cable specification, certification requirements, packaging, warranty terms, and available spare parts before placing a large order.
FLUENTPOWER® specializes in domestic water pumps and develops products covering submersible pumps, garden pumps, plastic housing pumps, stainless housing pumps, and booster pressure systems. The company states that it has more than 10 years of experience in pump manufacturing and focuses on domestic water-pumping applications. :contentReference[oaicite:10]{index=10}
For international distributors and water-system installers, this broader product range can be useful because different projects may require different pump configurations. A garden irrigation project, a rainwater storage system, and a domestic pressure-boosting application may have different hydraulic and installation requirements.
Water-saving practices, alternative water sources, and growing demand for convenient household equipment are encouraging the development of more integrated domestic water systems. Instead of treating pumps, tanks, gauges, and protection components as separate products, manufacturers are increasingly combining them into application-oriented systems.
For buyers, this means the right purchasing decision should be based on the complete water-supply requirement rather than motor power alone. Flow, head, suction capability, tank configuration, electrical compatibility, protection, installation conditions, and maintenance requirements all contribute to system performance.
With multiple power configurations, integrated motor protection, a pressure gauge, EPDM membrane tank, drainage provision, and customizable tank options, the Boost Pressure System with Plastic Housing provides a practical approach to automated domestic water supply, rainwater utilization, and garden irrigation. For distributors, contractors, and household water-system providers, FLUENTPOWER® offers an application-oriented solution backed by its broader domestic water pump manufacturing capabilities.
